Panel
KANEKA OLED lighting panel is simple, no extra components but light source.
The thin and light weight features specific to OLED lighting can be fully utilized for the design.
- • *The driver and the power supply must be prepared separately. If you are searching for a driver, please see Module.

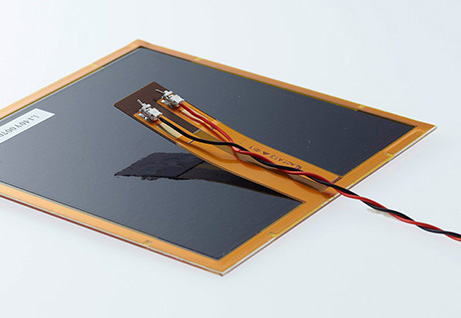

A panel with a cable connector is also available.
3000 K (standard)
Warm bulb color. Suitable for applications not requiring high color rendering or for applications with emphasis on efficiency.
3000 K (high color rendering)
Light bulb color as well as high color rendering.
Suitable for creating a warm atmosphere while recreating beautiful color.
4000 K (high color rendering)
High color rending type with white color suitable for shining light on human skin.
Also suitable for use as desk light or task light.
Specifications
| Correlated color temperature |
3000 K | 4000 K | |
|---|---|---|---|
| Standard | High color rendering |
High color rendering |
|
| CRI | 86 | 93 | 92 |
| Power efficiency | 40 lm/W | 36 lm/W | 29 lm/W |
| Luminance | 3,000 cd/m2 | 3,000 cd/m2 | 3,000 cd/m2 |
| Forward current*1 | 210 mA | 250 mA | 290 mA |
| Forward voltage*1 | 7.0 V | 6.9 V | 7.2 V |
| Power consumption*1 | 1.5 W | 1.7 W | 2.1 W |
| Thickness*2 | 1.05 mm (0.04") | 1.11 mm (0.04") | 1.11 mm (0.04") |
- *1…Value for 80 x 80 mm (3.15") panels.
- *2…Does not include the thickness of the connectors.
- * The product specifications and values are typical values and are not guaranteed.
- * A mirror surface panel is also available.
- * The mirror surface panel has different specifications from those indicated above. Please contact us for the details.
- * The product specifications and values are typical values and are not guaranteed.
Lineup
| Type | External dimensions | Light-emitting areas | Total luminous flux*3 |
|---|---|---|---|
| 80 x 80 mm (3.15") panels | L90 (3.54") mm x W90 (3.54") mm | L80 (3.15") mm x W80 (3.15") mm | 60 lm |
| 100 x 100 mm (3.94") panels*4 | L116 (4.57") mm x W116 (4.57") mm | L100 (3.94") mm x W100 (3.94") mm | 97 lm |
| Rectangle panels | L143 (5.63") mm x W23 (5.63") mm | L137.5 (5.41") mm x W15.1 (0.59") mm | 19 lm |
- *3…For luminance of 3000 cd/m2.
- *4…3000 K (standard) only
- * The product specifications and values are typical values and are not guaranteed.
- * A mirror surface panel is also available.
- * The mirror surface panel has different specifications from those indicated above. Please contact us for the details.
- * The product specifications and values are typical values and are not guaranteed.
